Monitoring via fiber optic cable wiring

Fiber optic monitoring relies on proper installation, handling, and sensing techniques to ensure accurate strain, temperature, or acoustic measurements.

Distributed Fiber Optic Sensing (DFOS)

Monitoring fiber optic wiring often uses distributed fiber optic sensing (DFOS) technologies, including Distributed Strain Sensing (DSS), Distributed Acoustic Sensing (DAS), and Distributed Temperature Sensing (DTS). These methods allow continuous monitoring over long distances from a central point, making them ideal for structural health monitoring of bridges, pipelines, and large industrial assets. DSS is the most common for structural applications, as it measures strain related to mechanical loads, requiring cables that efficiently transfer strain from the structure to the fiber optic sensor .

Installation Methods

Surface Installation

Fiber optic cables can be attached to the surface of a structure using adhesives or tapes. Proper surface preparation is essential, including cleaning, abrading, and conditioning the surface. Adhesives like M-Bond 200 or AE-10 are commonly used, followed by a protective layer such as RTV silicone to shield the fiber from environmental damage .

Embedded Installation

For high-resolution sensing, fibers can be embedded directly into materials like concrete or composites. This method ensures close coupling with the structure, providing accurate strain measurements along the fiber length .

Conduit or Direct Burial

Cables may also be installed in conduits or directly buried, depending on environmental conditions and protection requirements. The choice of installation affects cable armor, protection level, and compliance with local regulations .

Handling and Protection

Proper handling is critical to prevent damage. Key precautions include:

• Maintaining minimum bend radius to avoid fiber breakage.
• Avoiding tensile stress, twisting, squeezing, or pinching during installation.
• Using plastic clamps with large surface areas to secure cables without crushing them.

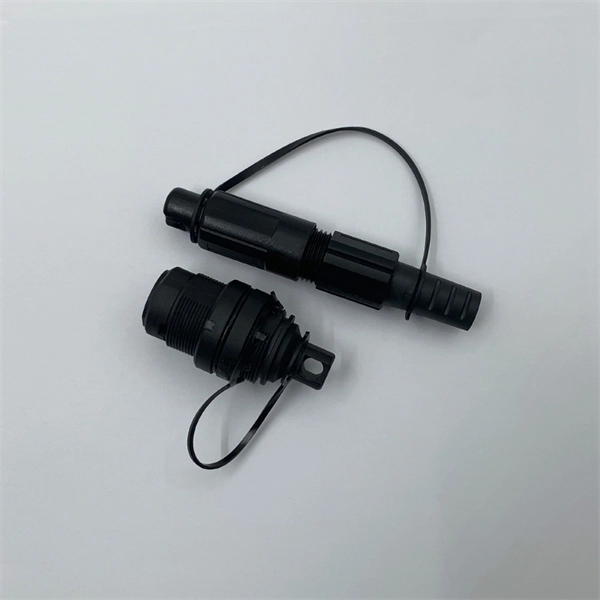

• Cleaning fiber ends and connectors with optical-grade wipes or solvents to prevent contamination and signal loss .

Testing and Certification

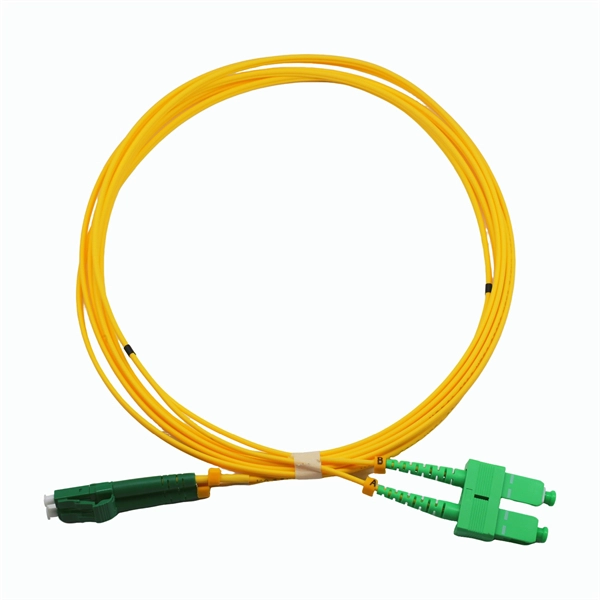

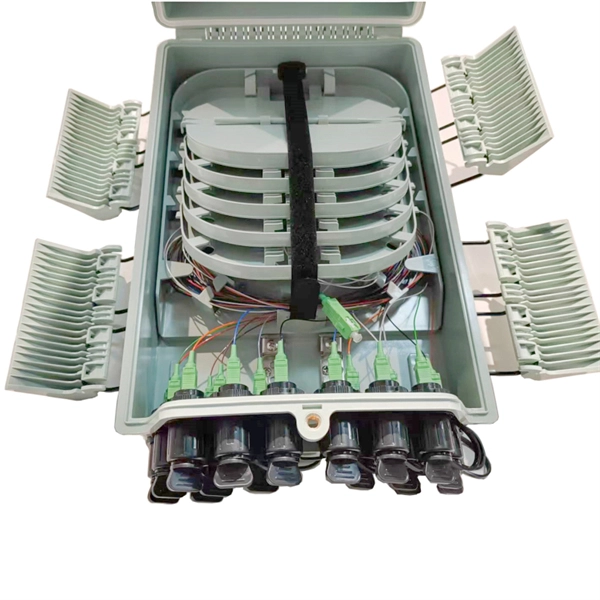

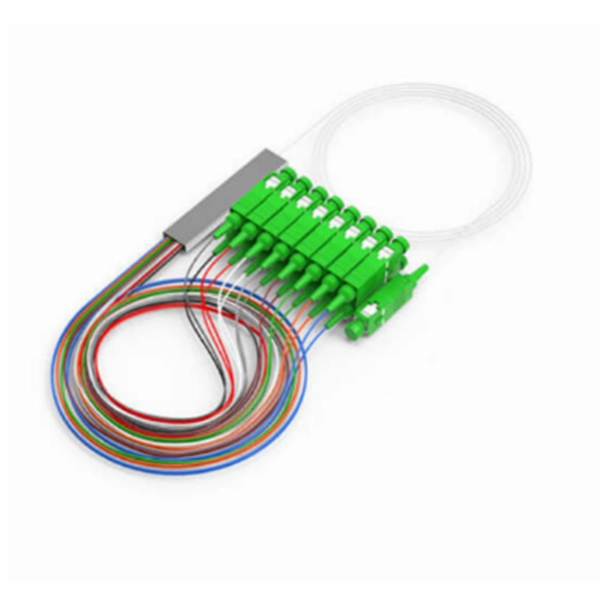

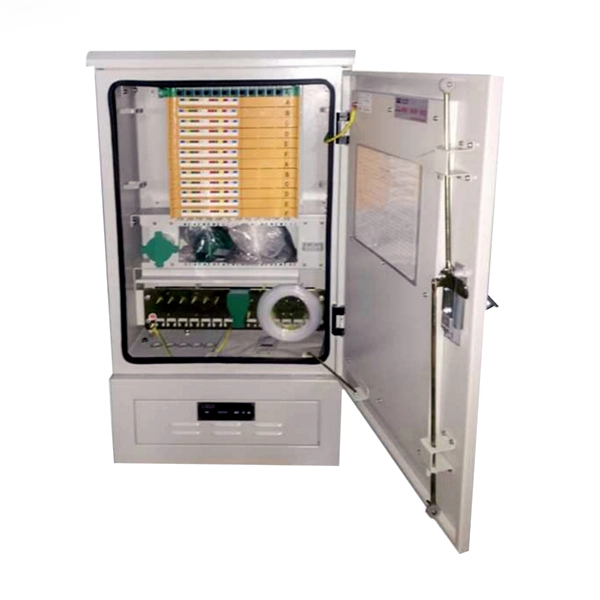

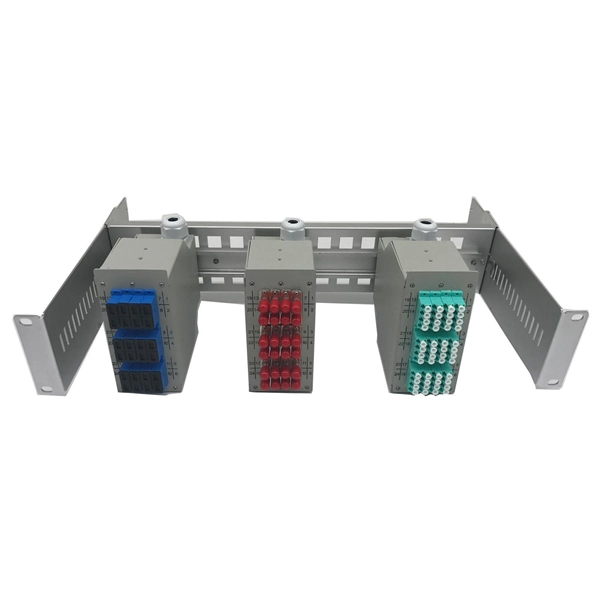

After installation, fiber optic links should be tested for performance. This includes checking attenuation, continuity, and connector integrity. Testing ensures the system meets design specifications and is ready for monitoring applications. Patch panels, adapters, and splices are evaluated as part of the passive fiber link, while active electronics are considered separately .

Summary

Effective monitoring of fiber optic wiring combines careful cable selection, proper installation (surface, embedded, or conduit), handling precautions, and thorough testing. Using distributed sensing technologies like DSS, DAS, or DTS allows continuous, high-resolution monitoring of structural or industrial assets, ensuring reliable data collection and long-term system performance .
