How to assemble a secondary power distribution box on a construction site

Assembling a secondary power distribution box on a construction site involves selecting the right enclosure, installing protective devices, wiring circuits correctly, ensuring proper earthing, and maintaining safety standards.

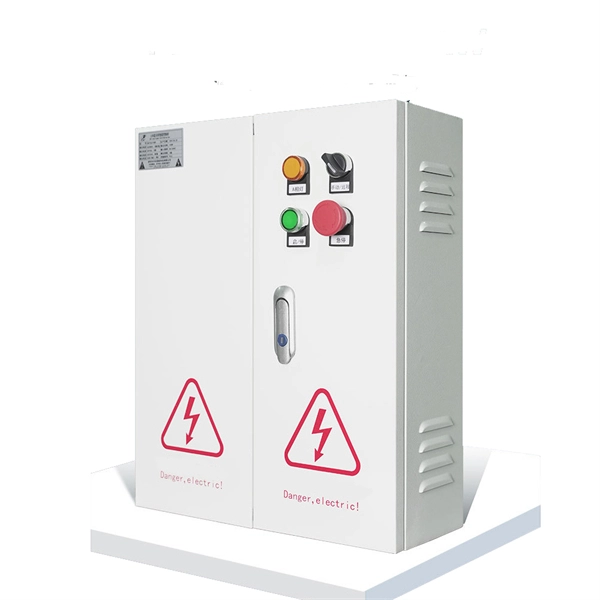

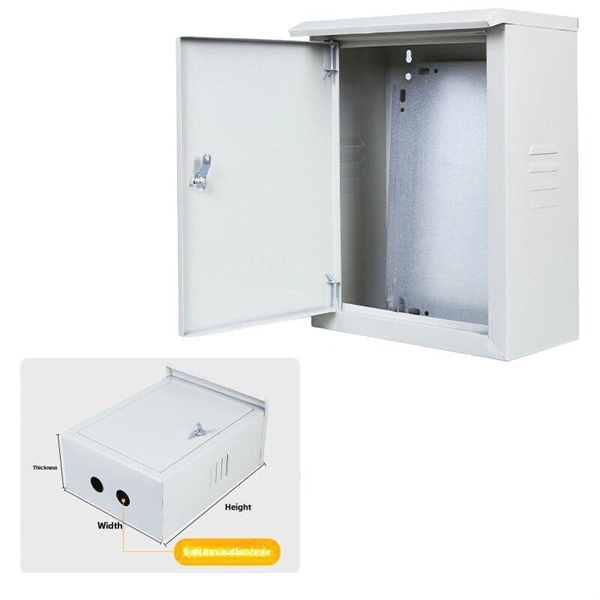

Step 1: Choose the Right Distribution Box

Select a construction-grade distribution box with at least IP55 protection to guard against dust and water ingress, which is essential for harsh construction environments ( ). Ensure the box has sufficient capacity for your expected load and future expansion ( ).

Step 2: Prepare the Installation Site

• Place the box on a stable, elevated surface to avoid water contact.
• Ensure easy accessibility for electricians and maintenance personnel.
• Maintain a safe distance from flammable, corrosive, or explosive materials ( ).

Step 3: Install Protective Devices

• Fit MCCBs (Molded Case Circuit Breakers) for main protection and MCBs (Miniature Circuit Breakers) for individual circuits ( ).
• Include RCDs or RCBOs to protect against earth leakage and overcurrent ( ).
• Label each breaker clearly for easy identification and maintenance.

Step 4: Wire Preparation and Termination

• Cut insulation to expose conductors and follow color coding standards: line to line, neutral to neutral, ground to ground ( ).
• Connect input and output wires to the corresponding terminals securely.
• Use cable ties and proper routing to organize wires neatly and allow heat dissipation ( ).

Step 5: Earthing and Safety

• Connect the box to a reliable earth system to prevent electric shock.
• Ensure all metallic parts are bonded and that the earthing meets local electrical codes ( ).

Step 6: Load Distribution

• Calculate the total load and distribute it evenly across circuits to prevent overloading ( ).
• For temporary construction setups, consider separate circuits for high-power equipment like welding machines, pumps, and lighting ( ).

Step 7: Testing and Commissioning

• Perform an insulation resistance test to verify wiring integrity ( ).
• Check all breakers and RCDs for proper operation.
• Ensure the box is securely mounted and all covers are in place before energizing.

Step 8: Maintenance Considerations

• Leave space around the box for ventilation and future maintenance.
• Regularly inspect for loose connections, damaged cables, or moisture ingress.
• Update circuit labels if changes are made to the load distribution ( ). By following these steps, a secondary power distribution box can be safely and efficiently assembled on a construction site, ensuring reliable power supply for all equipment and compliance with safety standards.
