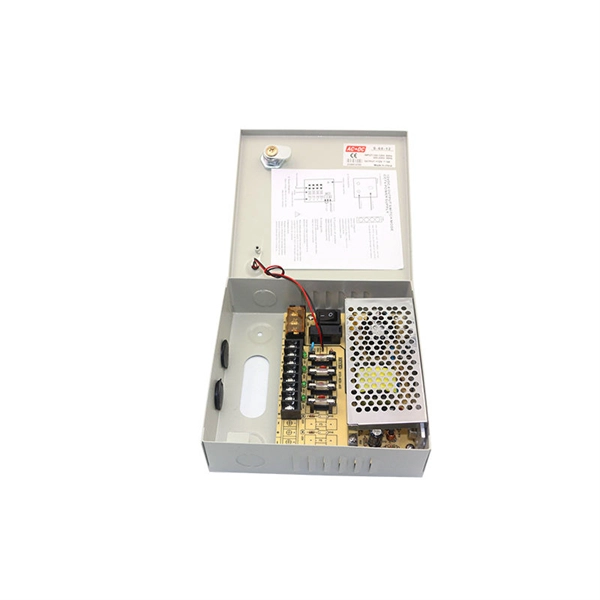

How to turn on the power supply function of the distribution box

To activate the power supply in a distribution box, ensure all wiring is correctly connected, then switch on the main MCB to allow electricity to flow to all branch circuits.

Step-by-Step Activation

1. Verify Installation and Safety Before activating, ensure the distribution box is properly installed and fixed, with all circuit breakers, wires, and protective devices in place according to design specifications. Confirm that the box is grounded and that all connections meet safety standards ( ). 2. Identify Input and Output Connections

• The main MCB (usually a double-pole MCB) receives the incoming phase and neutral from the main power supply ( ).
• The output of the main MCB connects to the RCCB or branch MCBs, which then distribute power to individual circuits ( ). 3. Connect Neutral and Earth Properly
• Connect the neutral wire from the main supply to the neutral link in the distribution box.
• Connect the earth wire from the supply or earth pit to the earth link. Ensure all metallic parts of the box are earthed ( ). 4. Check Branch Circuit Connections
• For single-pole MCBs, connect the phase wire from the RCCB output to the MCB input, and connect the neutral to the neutral link.
• For double-pole MCBs, connect both phase and neutral from the RCCB output to the MCB input ( ). 5. Turn On the Main MCB Once all connections are verified, switch on the main MCB. This will allow power to flow to the RCCB and subsequently to all branch MCBs, activating the distribution box ( ). 6. Activate Individual Circuits Turn on each branch MCB to supply power to the connected loads. Ensure that no MCB trips immediately, which could indicate a wiring fault or overload ( ). 7. Perform Safety Inspection After activation, check for:
• Proper voltage at each output
• No unusual heating or sparks
• Correct operation of protective devices like RCCBs and MCBs ( ). Important Safety Notes
• Always ensure the main supply is switched off before making or adjusting connections.
• Use insulated tools and wear protective equipment.
• If unsure, consult a licensed electrician, as improper handling can cause electric shock or fire ( ). By following these steps, the distribution box will safely distribute power to all connected circuits, and the power supply function will be fully activated.
